Choose the ideal wattage based on your specific requirements. From compact spaces to expansive outdoor areas, we offer a variety of wattage options to ensure optimal performance and efficiency for any application.
HS-HU06-100W
HS-HU06-150W
HS-HU06-200W
HS-HU06-300W
HS-HU06 Model Highbay Light
Product Category:
Product Category:
Product Category:

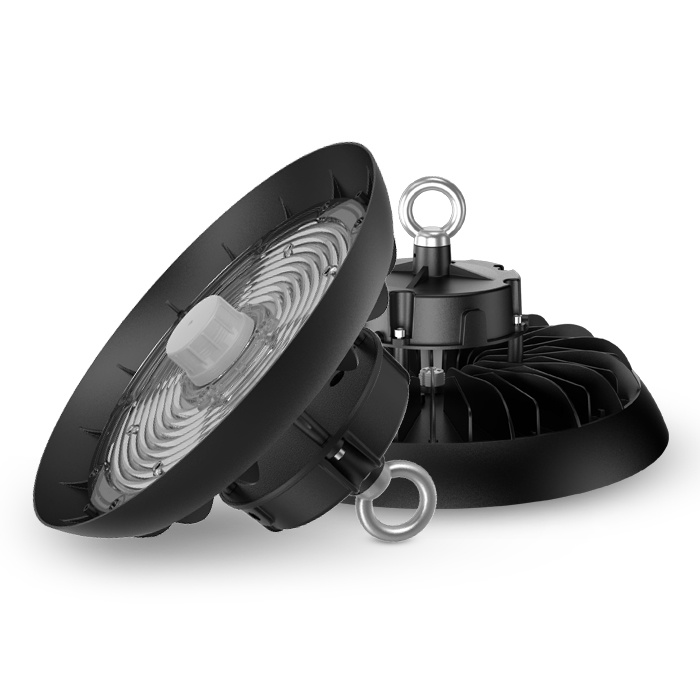

The HS-HU06 UFO High Bay Light offers 3CCT adjustability, efficient 2835 LED chips, and a reliable driver for consistent lighting. With an IP65 waterproof rating, PC lens, and die-cast aluminum housing, it's built for durability. Ideal for warehouses and factories, it also features a radar sensor for energy-saving, automatic lighting control.
| Model No. | HS-HU05 |
| Type | Indoor lighting |
| Material | Die-cast aluminum + PC |
| Mounting Method | Suspended/Bracket Mount |
| Warranty | 5 Years |
| Certification |  |

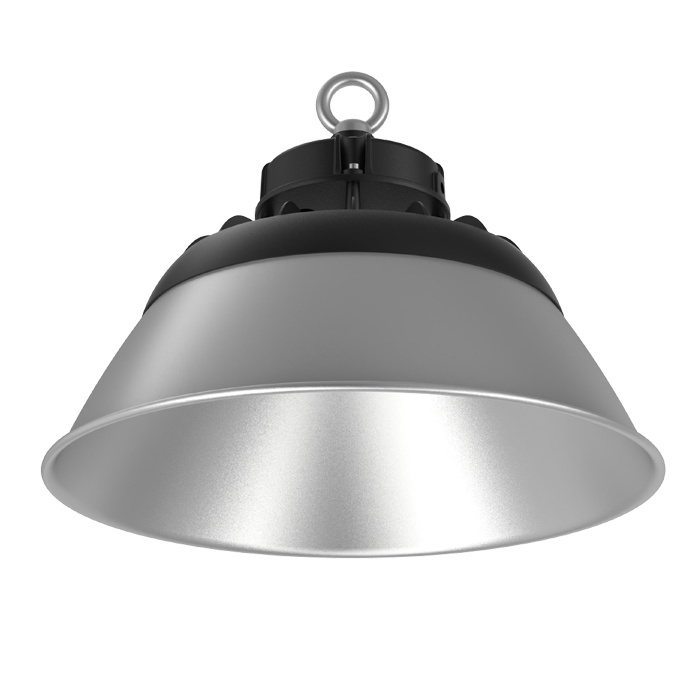

* For unique projects, our customization service creates tailored reflectors to match your specific lighting needs.
PRODUCT DETAILS
PRODUCT DETAILS
TECHNICAL DATA
| Model No. | HS-HU06-100W | HS-HU06-150W | HS-HU06-200W | HS-HU06-300W |
| Nominal Wattage | 100 W | 150 W | 200 W | 300 W |
| Nominal Volts | 85-265 VAC | |||
| Light Bead | SMD2835 160pcs | SMD2835 240pcs | SMD2835 320pcs | SMD2835 480pcs |
| Luminance Efficiency | 160Lm/W | |||
| Luminous Flux | 16,000Lm | 24,000Lm | 32,000Lm | 48,000Lm |
| Beam Angle | 90° | |||
| CRI | 80+ | |||
| Materials | Die-cast aluminium Housing + PC lens | |||
| IP | Rating IP65 | |||

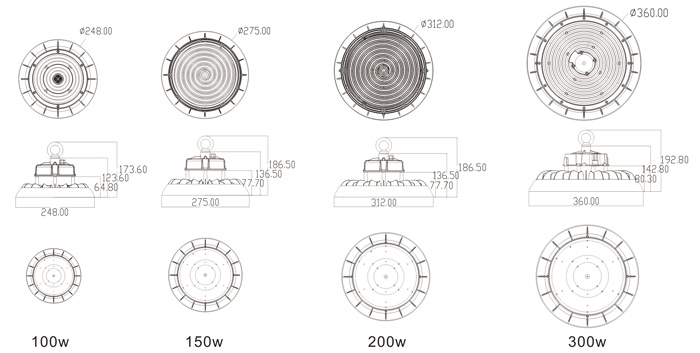

| Size（mm） | φ248*248*173.6 | φ275*275*186.5 | φ312*312*186.5 | φ360*360*192.8 |
DETAILED FEATURES

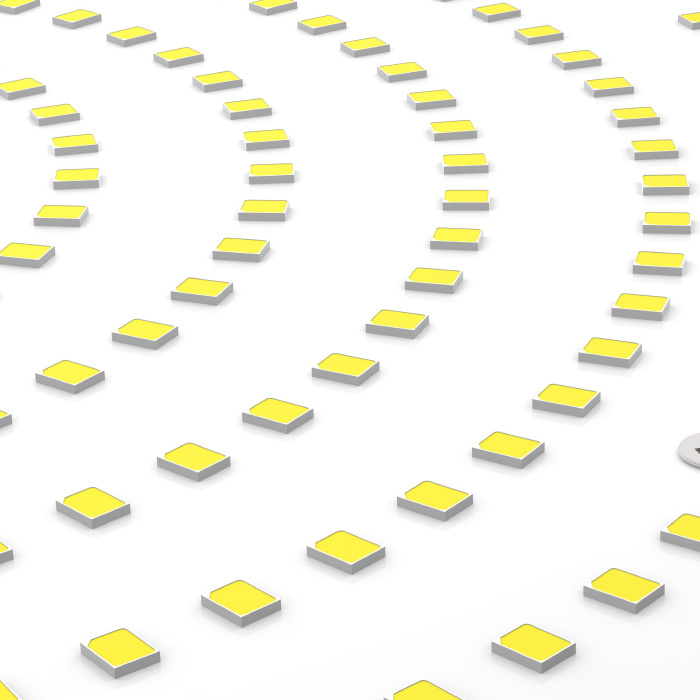

LED Chips
Our high-performance lighting fixtures are equipped with premium SMD2835 LEDs from renowned brands such as OSRAM, Philips, and other leading manufacturers. These high-lumen, energy-efficient LEDs provide superior brightness, long lifespan, and consistent performance, ensuring optimal illumination for a wide range of applications. With their exceptional color rendering and low energy consumption, these LEDs are perfect for both commercial and industrial settings, delivering high-quality lighting while reducing operational costs.
Optical Lens
Our optical lenses are crafted from premium PC (Polycarbonate) material, offering excellent light transmission and durability. 60°/90°/120° integrated spiral adjustable lenses allow for easy removal and angle adjustment, offering flexible control over light distribution for optimal illumination in various environments.
Housing Construction
The housing is made of high-quality die-cast aluminum, providing excellent strength and durability. The surface is coated with a specialized outdoor powder coating that offers superior protection against environmental elements, ensuring long-lasting performance in harsh conditions. The design also facilitates efficient heat dissipation, helping to maintain optimal operating temperatures and prolonging the lifespan of the fixture. This combination of materials and finish ensures a reliable, robust solution for both indoor and outdoor applications.

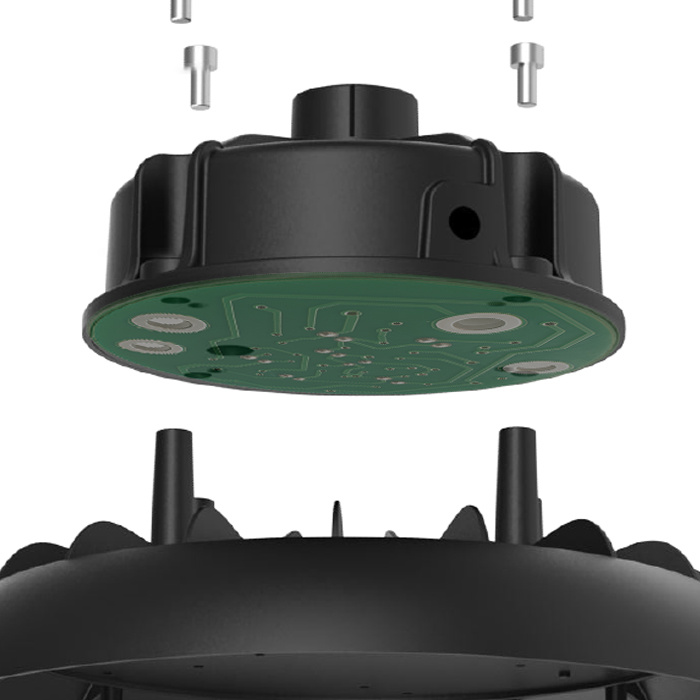

Power Driver
Our lighting fixtures are equipped with high-quality power drivers from reputable brands such as MeanWell and Lifud. These drivers ensure stable performance, high efficiency, and reliable power conversion, while meeting international safety standards. With features like overload protection, short-circuit protection, and over-voltage protection, these drivers provide enhanced durability and safety. Designed for optimal compatibility, they support constant current or constant voltage modes depending on the application, ensuring consistent and efficient power delivery to the LEDs. Ideal for commercial and industrial lighting, our power drivers maximize energy savings and extend the lifespan of the entire system.
FUNCTIONS & CUSTOMIZATION

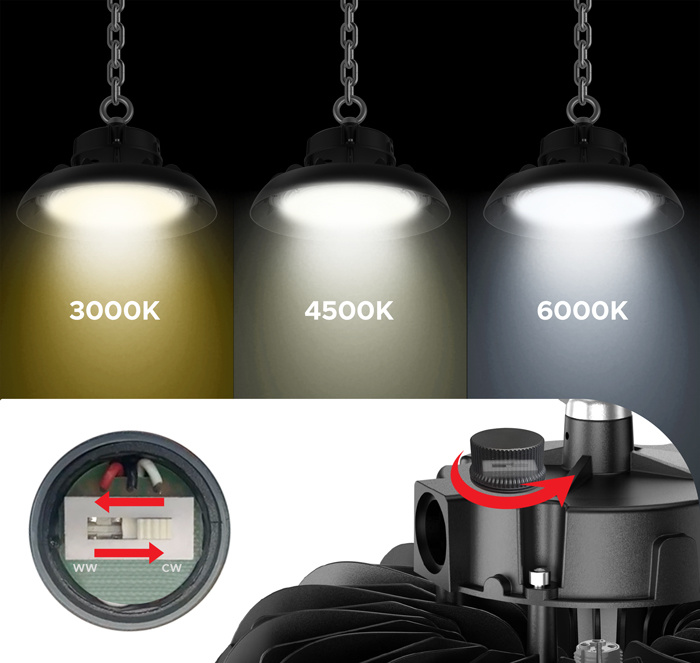

3CCT Mode
Utilizes a dip switch mechanism to adjust the color temperature, offering enhanced convenience and flexibility. With three selectable options—such as 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White)—users can easily customize the lighting to suit various environments and needs. This design eliminates the need for multiple fixtures, reducing inventory and installation complexity while ensuring optimal illumination for both residential and commercial applications.
Waterproof and Dustproof
Built to withstand harsh conditions, this highbay light features excellent waterproof and dustproof performance with a robust design. Its IP-rated protection ensures reliable operation in industrial facilities, warehouses, and outdoor spaces, even in challenging environments.

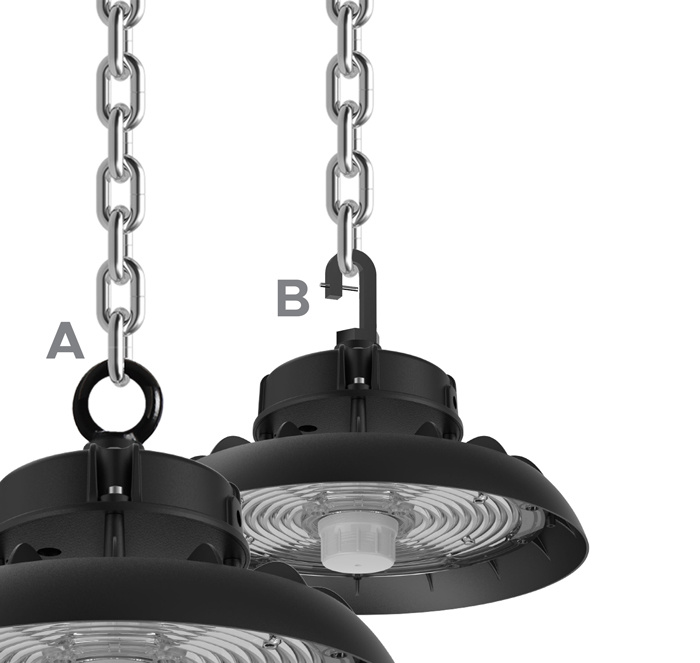

Hook Options
Choose the appropriate hook type to ensure secure and stable installation of your highbay lights:
- A. Traditional Hook: Featuring a classic design, this hook is suitable for a variety of industrial and commercial applications. It is easy to install and provides reliable support.
- B. US Standard Hook: Designed to meet US national standards, this hook offers enhanced stability and safety, making it ideal for high-demand environments.
Whether you choose the traditional or US standard hook, both options ensure long-term, reliable performance of your highbay lights in demanding conditions.

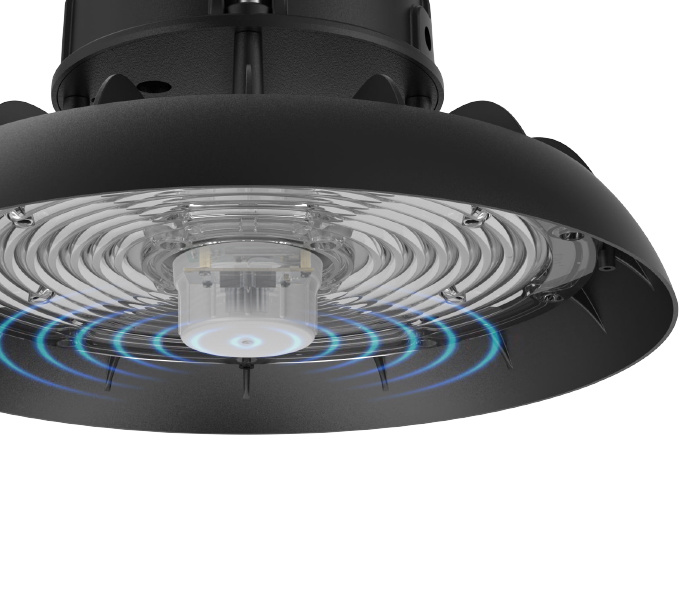

External Radar Sensor
Offers advanced features designed for optimal performance in various environments, particularly warehouses.
- Portable Zhaga interface for external installation, offering flexible setup options.
- Maximum installation height of 12 meters, suitable for most warehouse applications.
- High-seal housing design with IP65 waterproof rating for durability and protection.
- Adjustable detection range (high sensitivity/low sensitivity), adaptable to strong metal reflection environments.
- Stable performance with no self-oscillation, ensuring reliable operation in challenging conditions.
Custom Materials
We offer comprehensive customization services that extend beyond the product itself to include both internal and external packaging as well as instructional materials. Our team works with you to design packaging that reflects your brand identity and ensures safe transportation. Additionally, we provide customizable user manuals, product brochures, and other documentation tailored to your specific requirements, enhancing the customer experience. Whether it's for retail or bulk orders, we ensure that every detail is aligned with your brand vision and product specifications.
