Outdoor Light
LED Flood Light
Choose the ideal wattage based on your specific requirements. From compact spaces to expansive outdoor areas, we offer a variety of wattage options to ensure optimal performance and efficiency for any application.
HS-HR05-30W
HS-HR05-50W
HS-HR05-100W
HS-HR05-200W
HS-HR05-300W

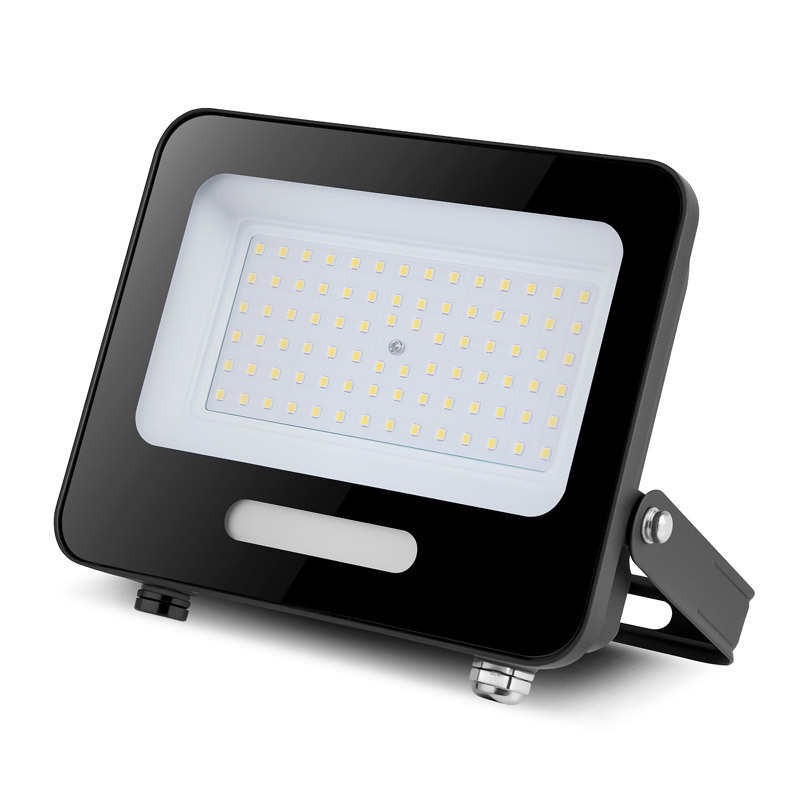

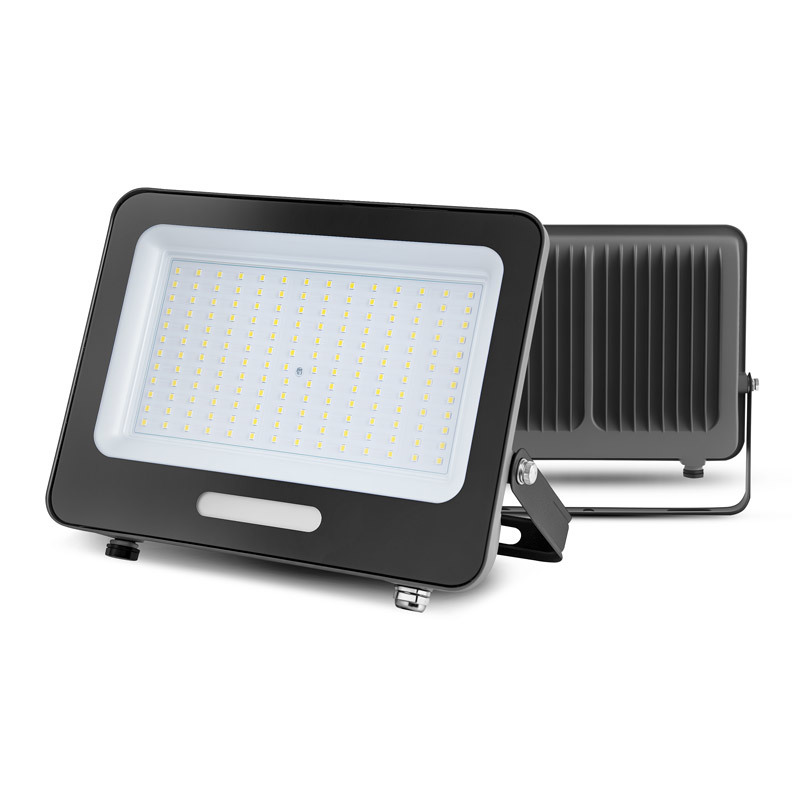

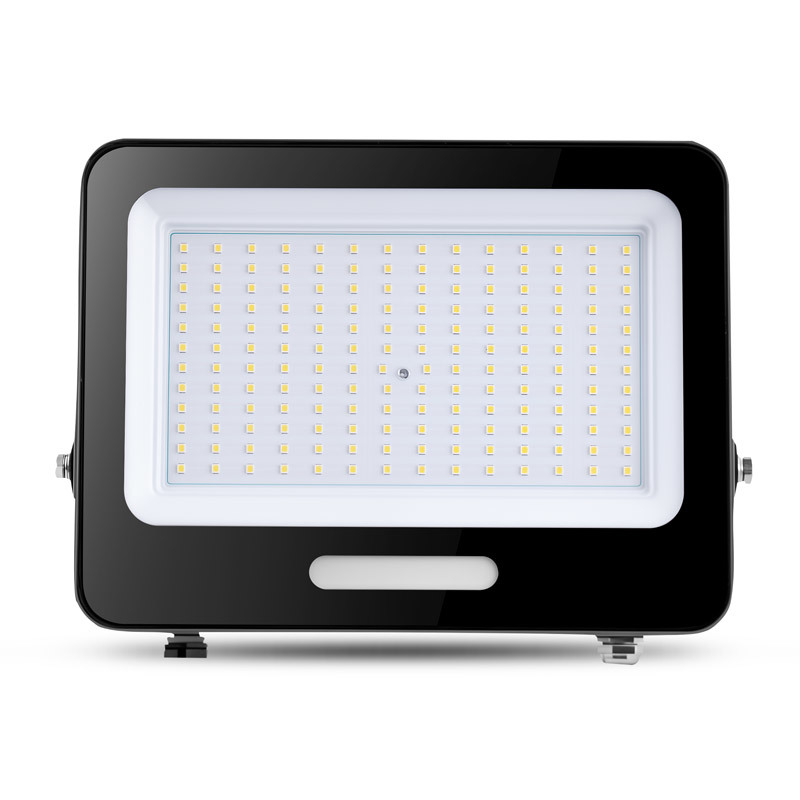

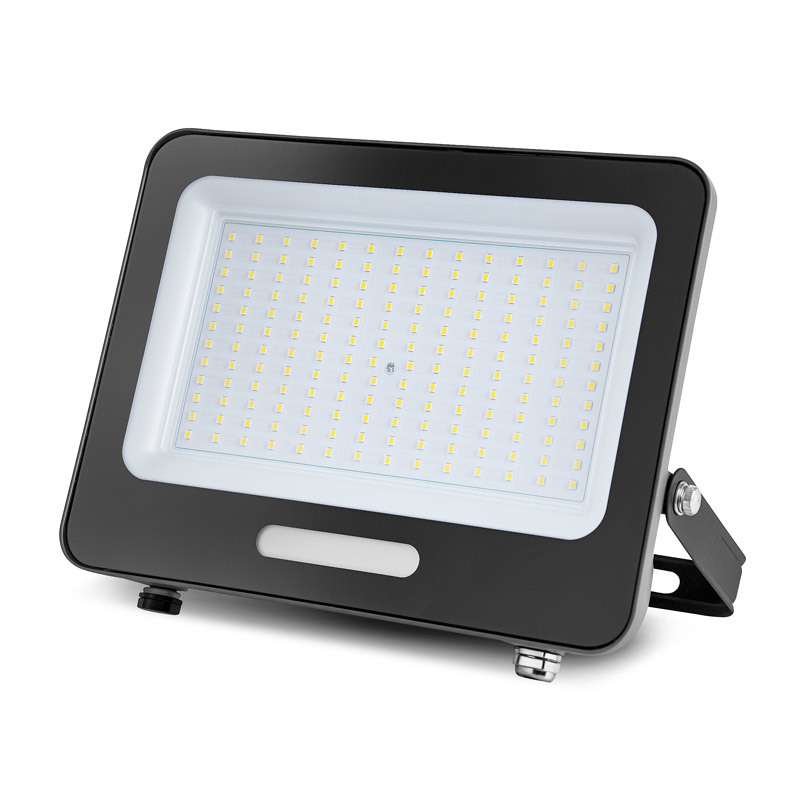

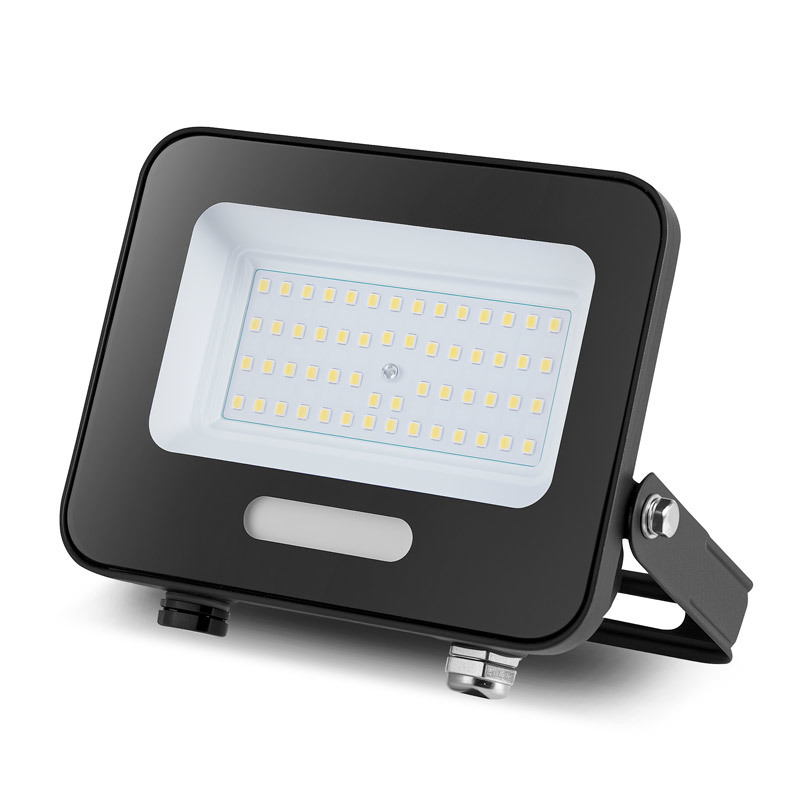

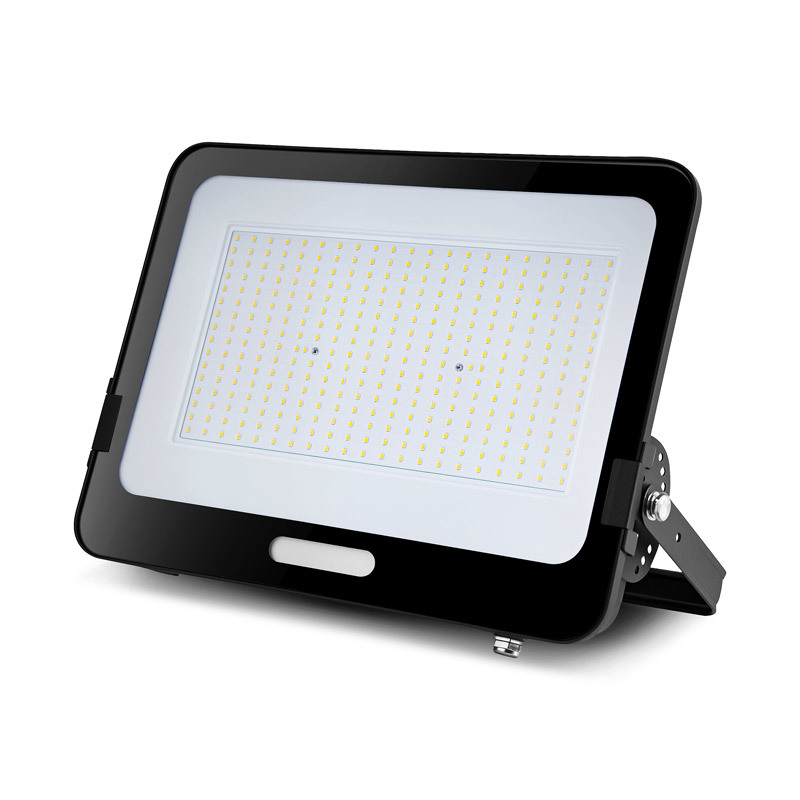

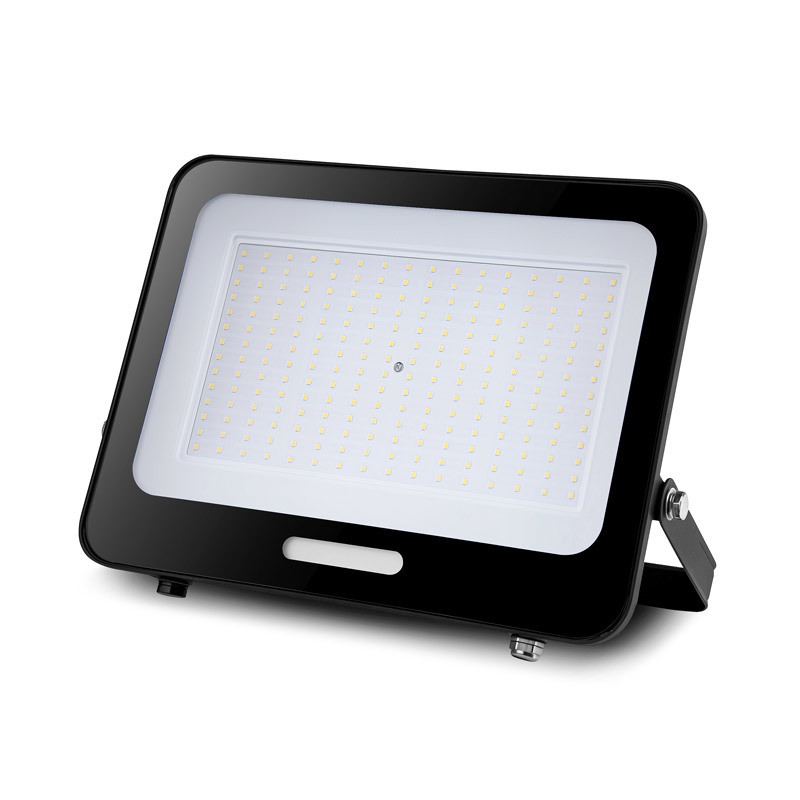

HR05 Model LED Flood Light
HS-HR05 is a strong floodlight built with die-cast aluminum and tempered glass, offering features like a radar sensor, and three color temperature settings alongside many certifications.
| Model No. | HS-HR05 |
| Type | Outdoor lighting |
| Material | Die-cast aluminum + Tempered glass |
| Mounting Method | Surface mount |
| Warranty | 5 Years |
| Certification |  |
* For unique projects, our customization service creates tailored reflectors to match your specific lighting needs.
PRODUCT DETAILS
PRODUCT DETAILS
TECHNICAL DATA
| Model No. | HS-HR05-30W | HS-HR05-50W | HS-HR05-100W | HS-HR05-200W | HS-HR05-300W |
| Nominal Wattage | 30W | 50W | 100W | 200W | 300W |
| Nominal Volts | 220-240 VAC | ||||
| Light Bead | SMD2835 40pcs | SMD2835 90pcs | SMD2835 189pcs | SMD2835 288pcs | SMD2835 435pcs |
| Luminance Efficiency | 120Lm/W | ||||
| Luminous Flux | 3600Lm | 6000Lm | 1,2000Lm | 2,4000Lm | 3,6000Lm |
| Beam Angle | 120° | ||||
| CRI | 80+ | ||||
| Materials | Die-cast aluminium Housing + Tempered glass lens | ||||
| IP | Rating IP65 | ||||
| Size（mm） | 138*30*107 | 180*33.4*140.5 | 234*34.9*177.2 | 263.1*39.2*199.3 | 315*38.3*238 |
DETAILED FEATURES

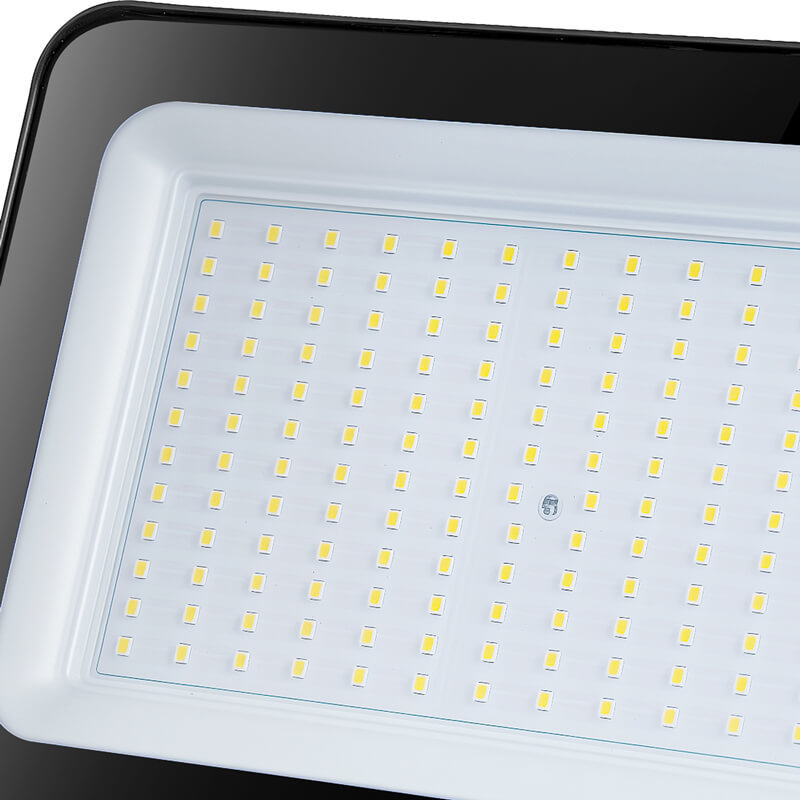

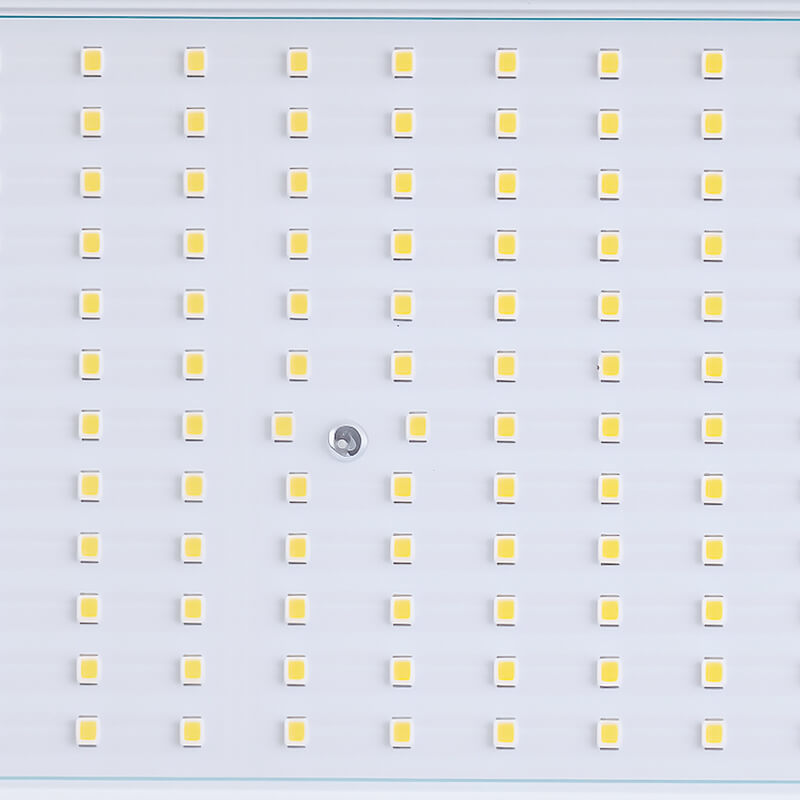

SMD 2835 High Brightness Chips
Maximize the effectiveness in terms of energy use while decreasing the loss of high quality light output. The thermal resistance is as low as can be, and the color rendering index is superb.
Tempered Glass Lens
Offer the best quality impact and heat resistance. Excellent for outdoor and all rugged conditions as they can endure long periods of exposure while still allowing maximum clarity and protection for the LEDs below.

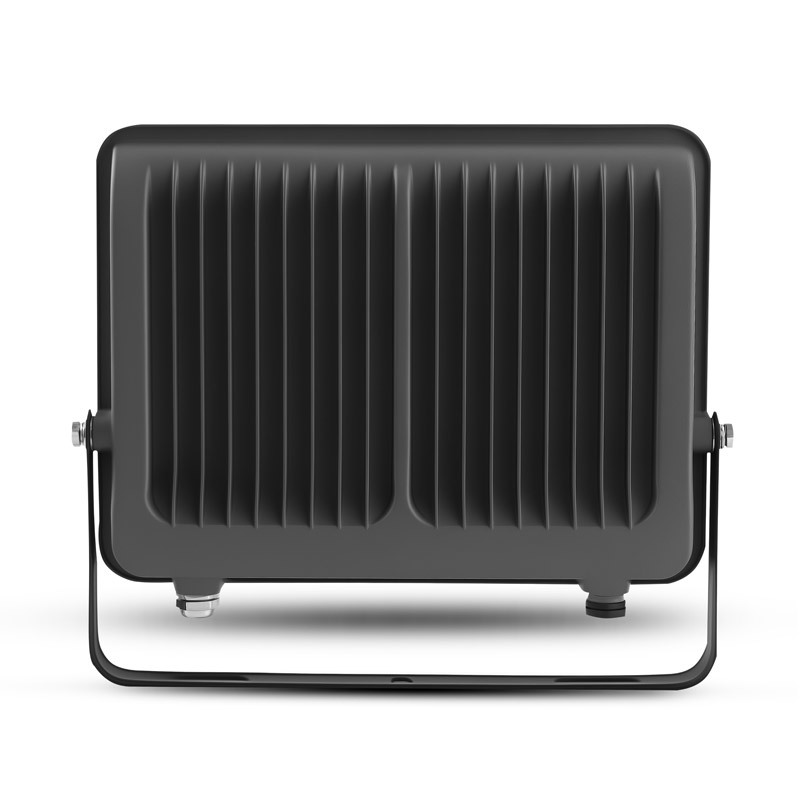

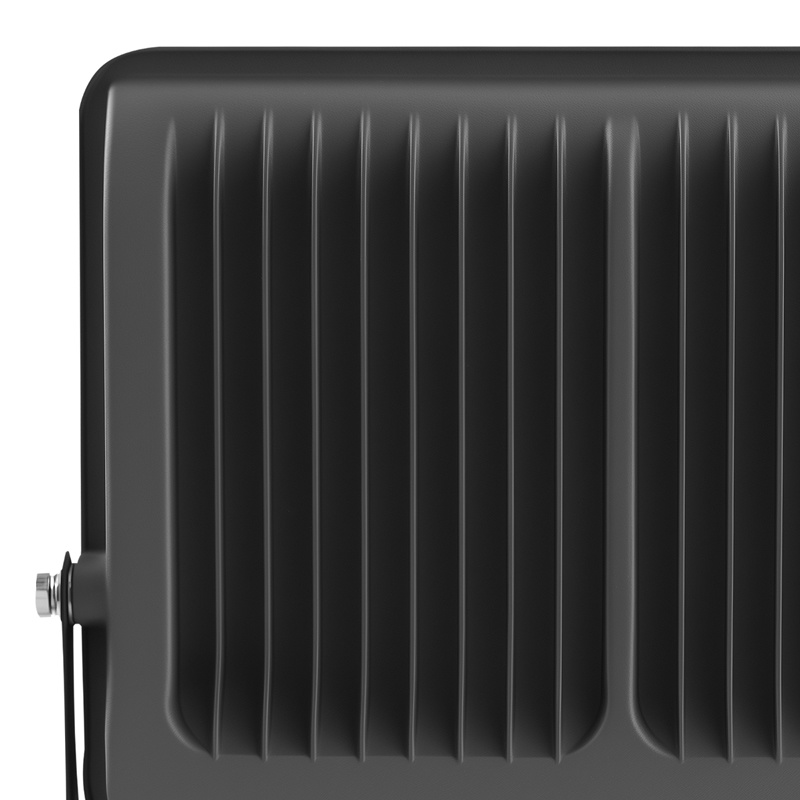

Die-cast Aluminium Housing
It is impact resistant as well as extremely light, making it corrosion resistant while also allowing maximum cooling and protection for the outdoor exposed electrical devices.

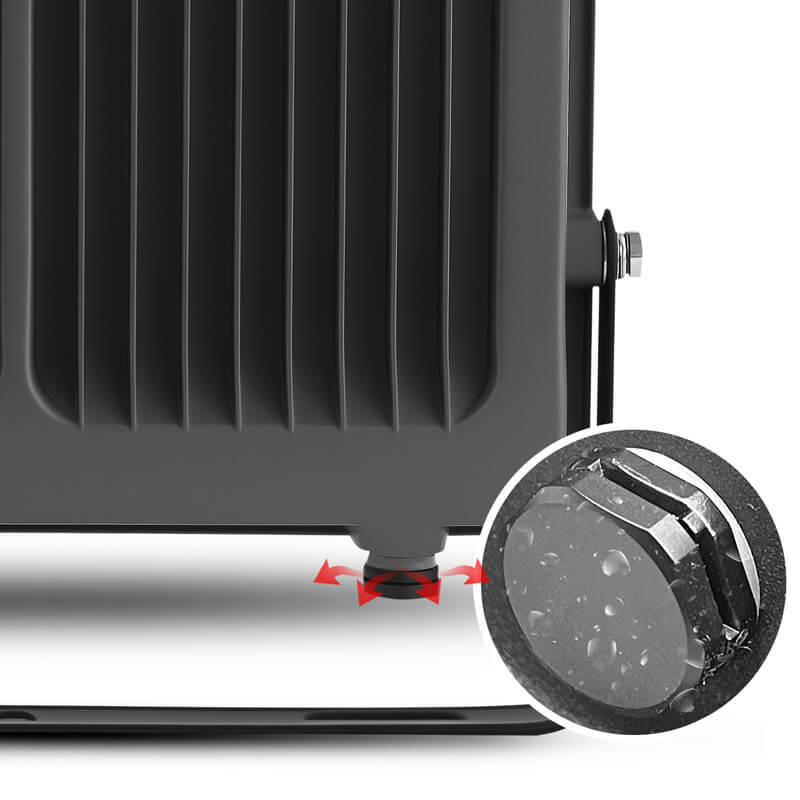

IP68 Waterproof Breather Valve
Ensures effective pressure regulation and prevents moisture buildup, providing reliable protection in extreme weather conditions.
FUNCTIONS & CUSTOMIZATION

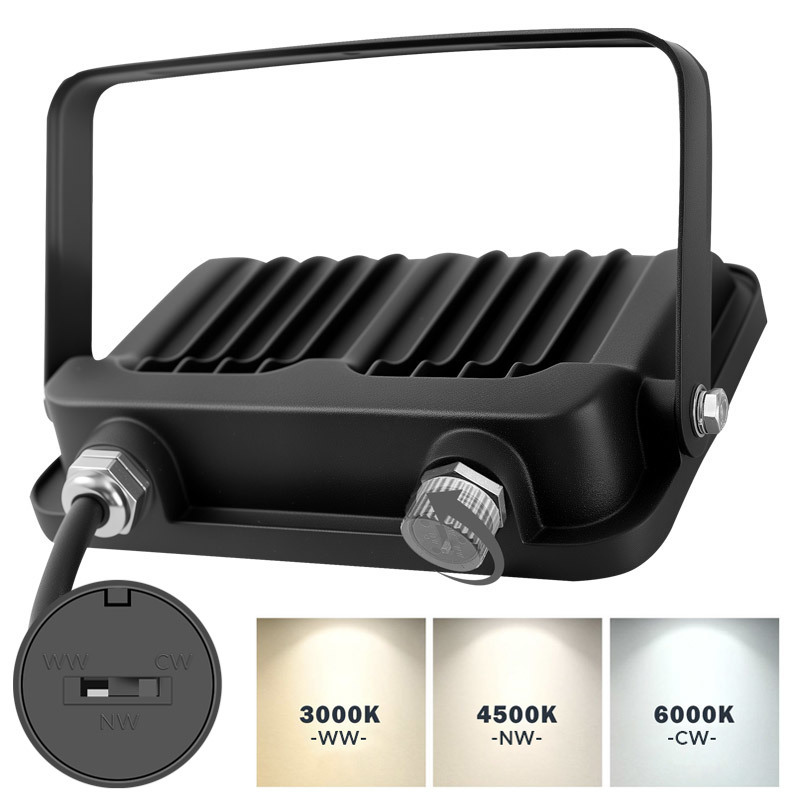

3CCT Mode
3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White) allow the user to customize the different lights to suit different uses. This design allows the user to do away with several fittings and hence reduces the user's stock and installation workload. This ensures that effective lighting is provided for as many areas as possible without the restrictions of several different lights and is ideal for home as well as business use.

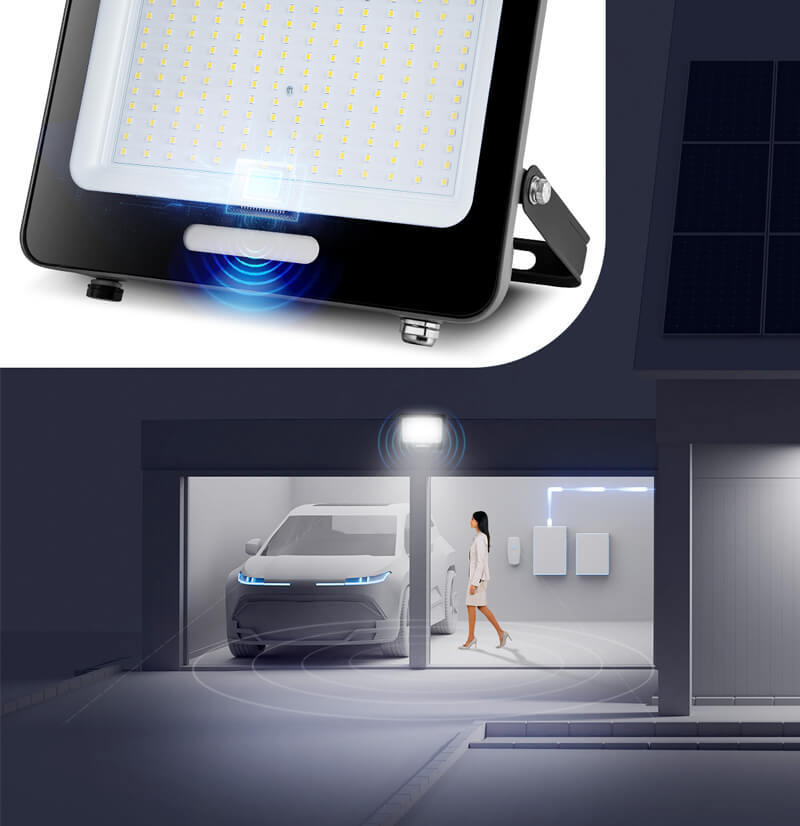

Built-in Radar Sensor Model
- Integrated design: Imperceptibly integrated in the fitting.
- High sensitivity: Movement can be detected behind walls or glass.
- Wide range: Accurate detection over a wide area.
- Energy-efficient: Changes in movement control lighting intensity for power conservation.
OEM Customization Services
We specialize in professional OEM customization, offering precise logo branding on both housings and lenses.

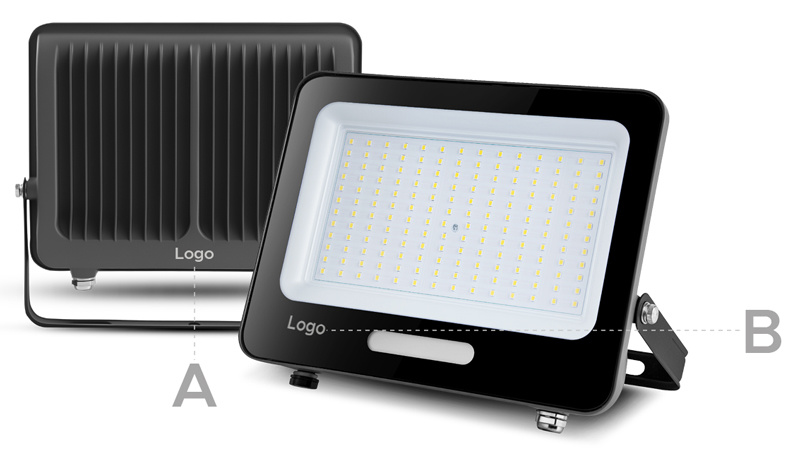

(B) Lenses utilize advanced laminated glass printing technology for durability and clarity, while (A) housings feature high-precision laser engraving for a sleek, professional finish. These tailored solutions ensure your products stand out with a unique and premium design.
Packaging and Material Customization
We specialize in customized packaging solutions, including product boxes, instruction booklets, and corrugated outer boxes. To achieve the desired brand image, we take care of quality and functionality while ensuring every polished detail enhances the overall value of your product.
*Minimum order quantities apply.
PACKAGING INFORMATION
DOCUMENTS AND CERTIFICATES
