Outdoor Light
LED Flood Light
Choose the ideal wattage based on your specific requirements. From compact spaces to expansive outdoor areas, we offer a variety of wattage options to ensure optimal performance and efficiency for any application.

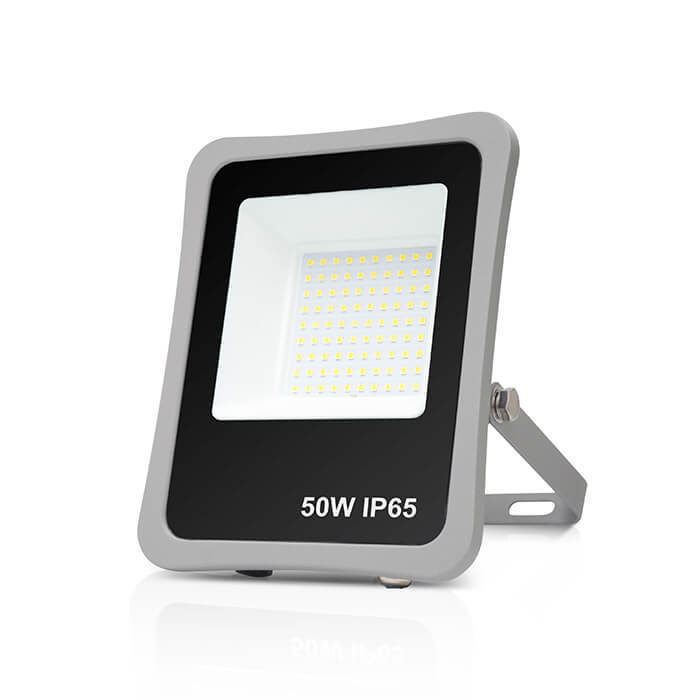

HS-HA-50W

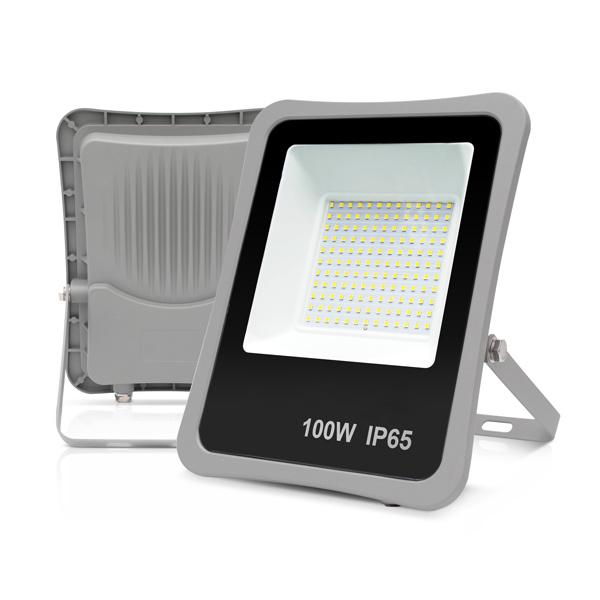

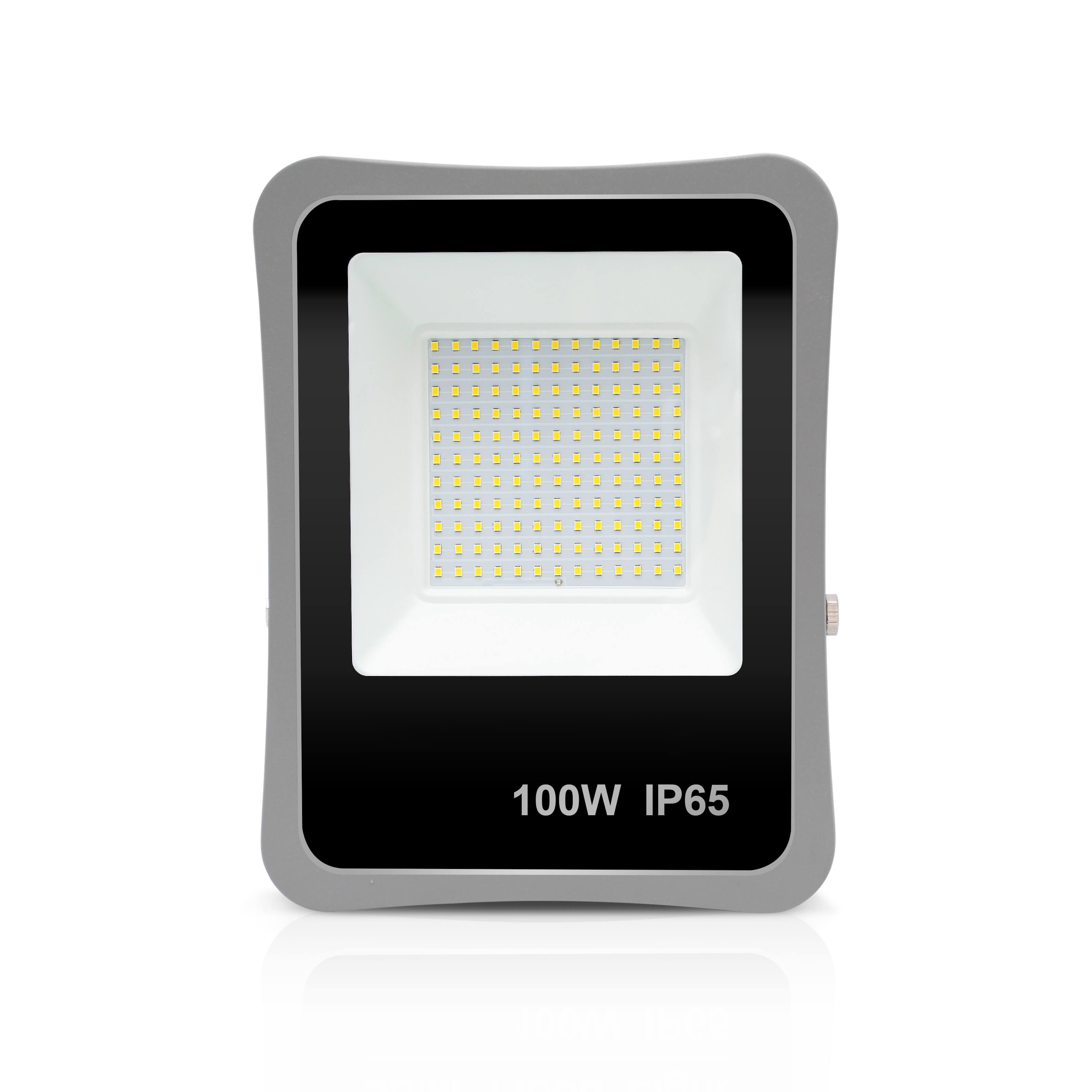

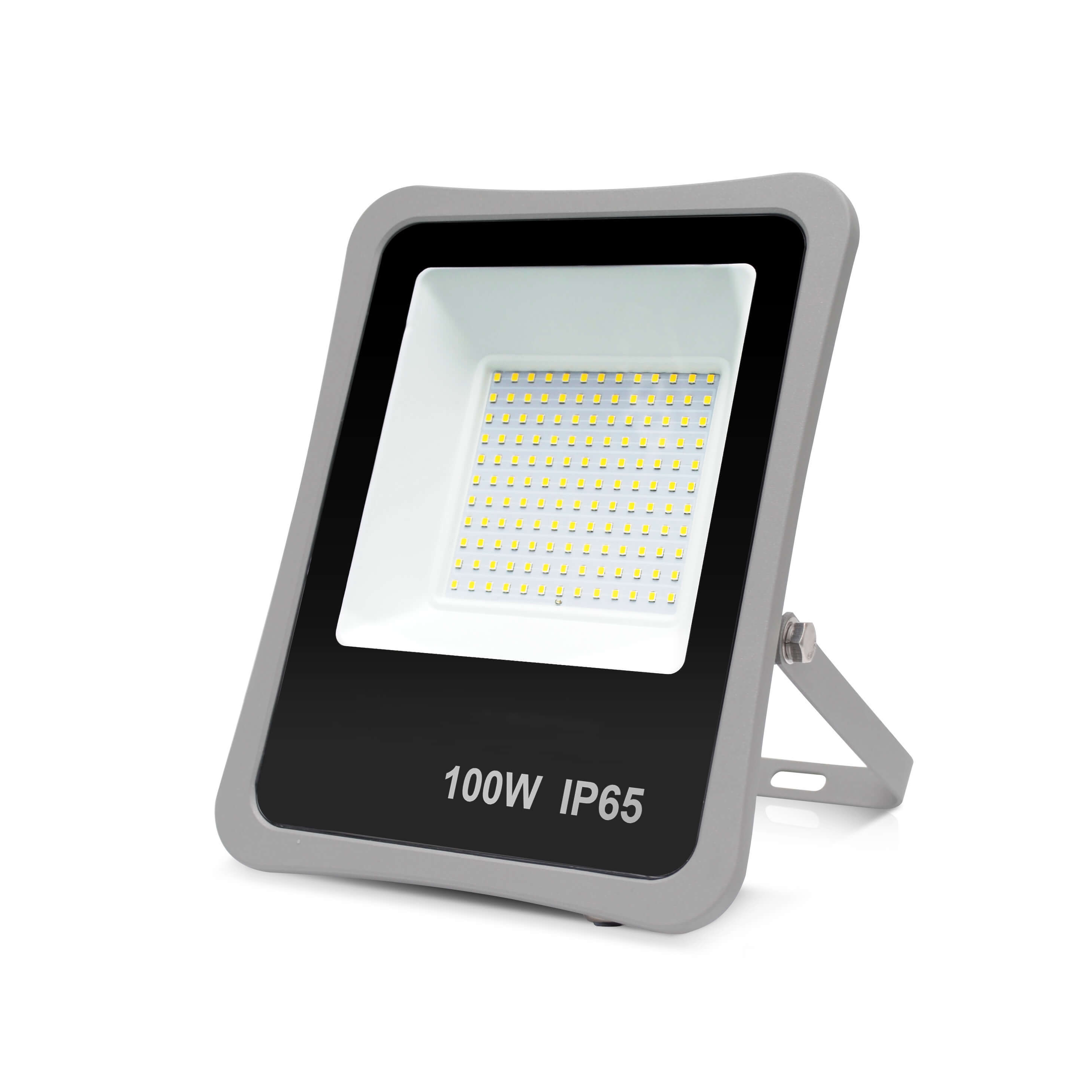

HS-HA-100W

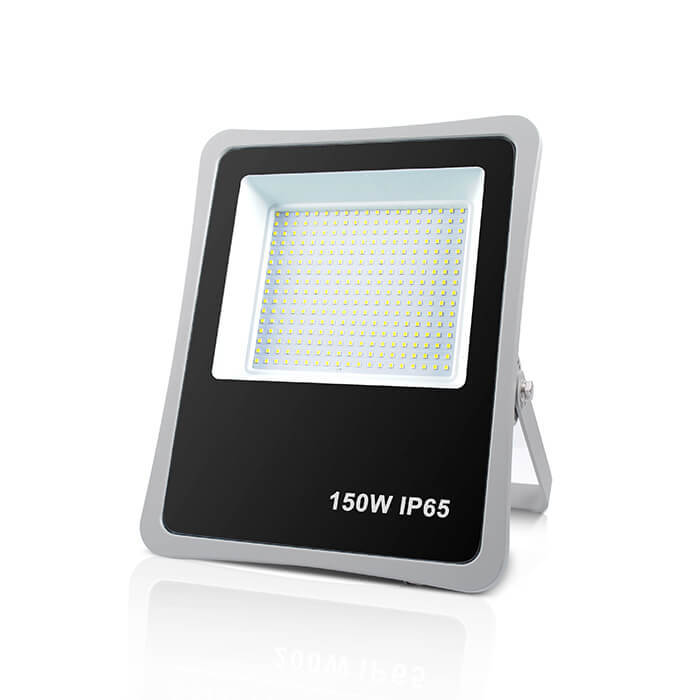

HS-HA-150W

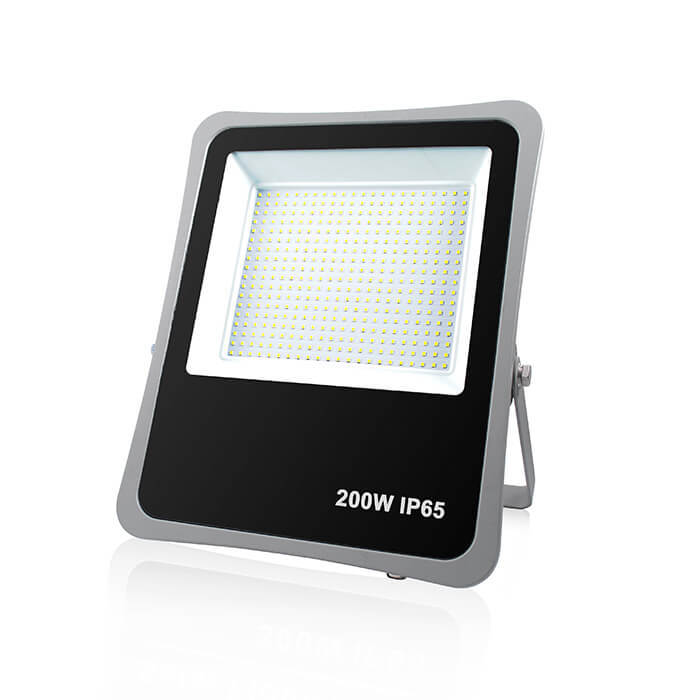

HS-HA-200W
HA Model LED Flood Light
HS-HA is a robust floodlight constructed with die-cast aluminum and tempered glass. It offers customizable options, including 3CCT adjustable color temperatures, motion sensor functionality, radar sensor integration, and dual-lens choices. The product is backed by comprehensive certifications for reliability and quality.
| Model No. | HS-HA |
| Type | Outdoor lighting |
| Material | Die-cast aluminum + Tempered glass |
| Mounting Method | Surface mount |
| Warranty | 5 Years |
| Certification |  |
* For unique projects, our customization service creates tailored reflectors to match your specific lighting needs.
PRODUCT DETAILS
PRODUCT DETAILS
TECHNICAL DATA
| Model No. | HS-HA-50W | HS-HA-100W | HS-HA-150W | HS-HA-200W |
| Nominal Wattage | 50W | 100W | 150W | 200W |
| Nominal Volts | AC110-130/220-240V | |||
| Light Bead | SMD 2835 80pcs | SMD 2835 140pcs | SMD 2835 320pcs | SMD 2835 480pcs |
| Luminance Efficiency | 120Lm/W | |||
| Luminous Flux | 5000Lm | 1,2000Lm | 1,8000Lm | 2,4000Lm |
| Beam Angle | 120° | |||
| CRI | >80 | |||
| Materials | Die-cast aluminium Housing + Tempered glass lens | |||
| IP | Rating IP65 | |||
| Size（mm） | 167*48*206 | 206*48*265 | 276*48*346 | 316*49*396 |
DETAILED FEATURES

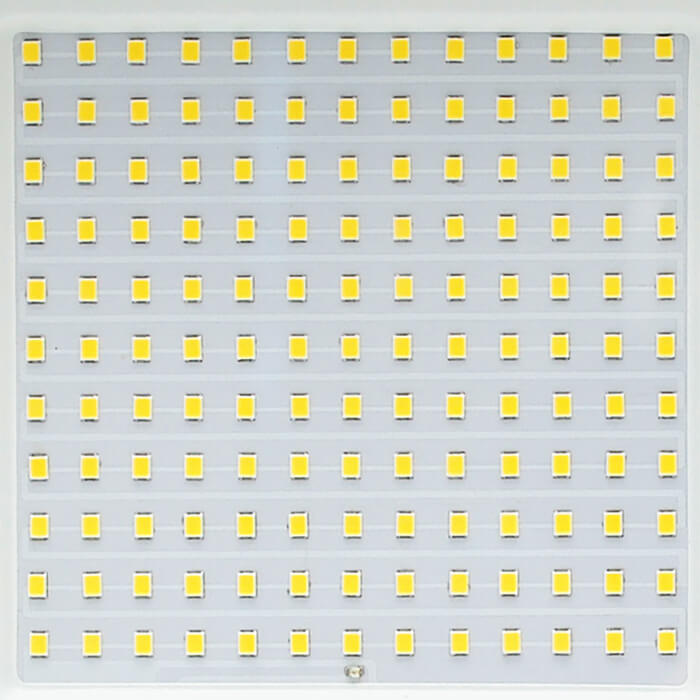

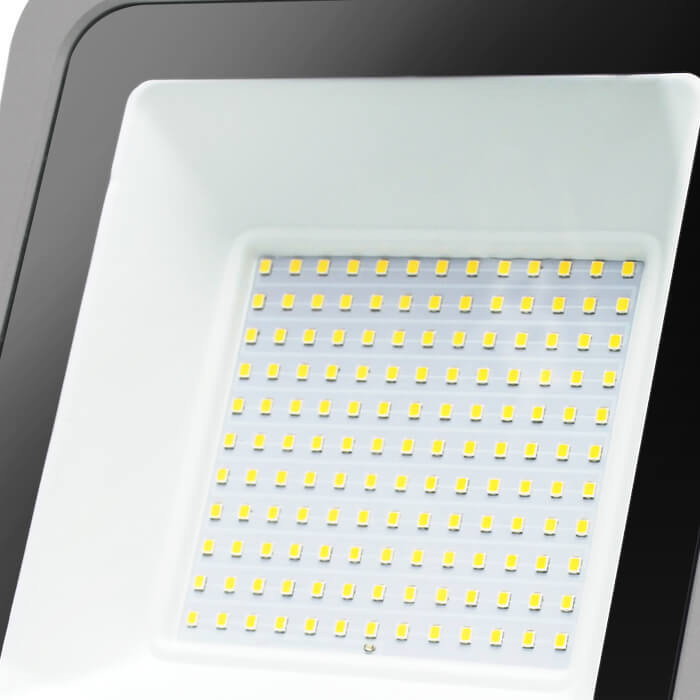

SMD 2835 High Brightness Chips
These chips offer high luminous output, low thermal resistance, and excellent CRI. Ideal for LED strips, downlights, and panels, they ensure reliable, vibrant illumination with energy-saving performance. Available with renowned brands such as Osram, Philips, and other trusted names, ensuring top-notch quality and reliability.
Tempered Glass Lens
Provide superior strength and durability, offering enhanced impact resistance and heat tolerance. Ideal for outdoor lighting and harsh environments, they ensure long-lasting clarity and protection for LED lights, ensuring optimal performance and safety.

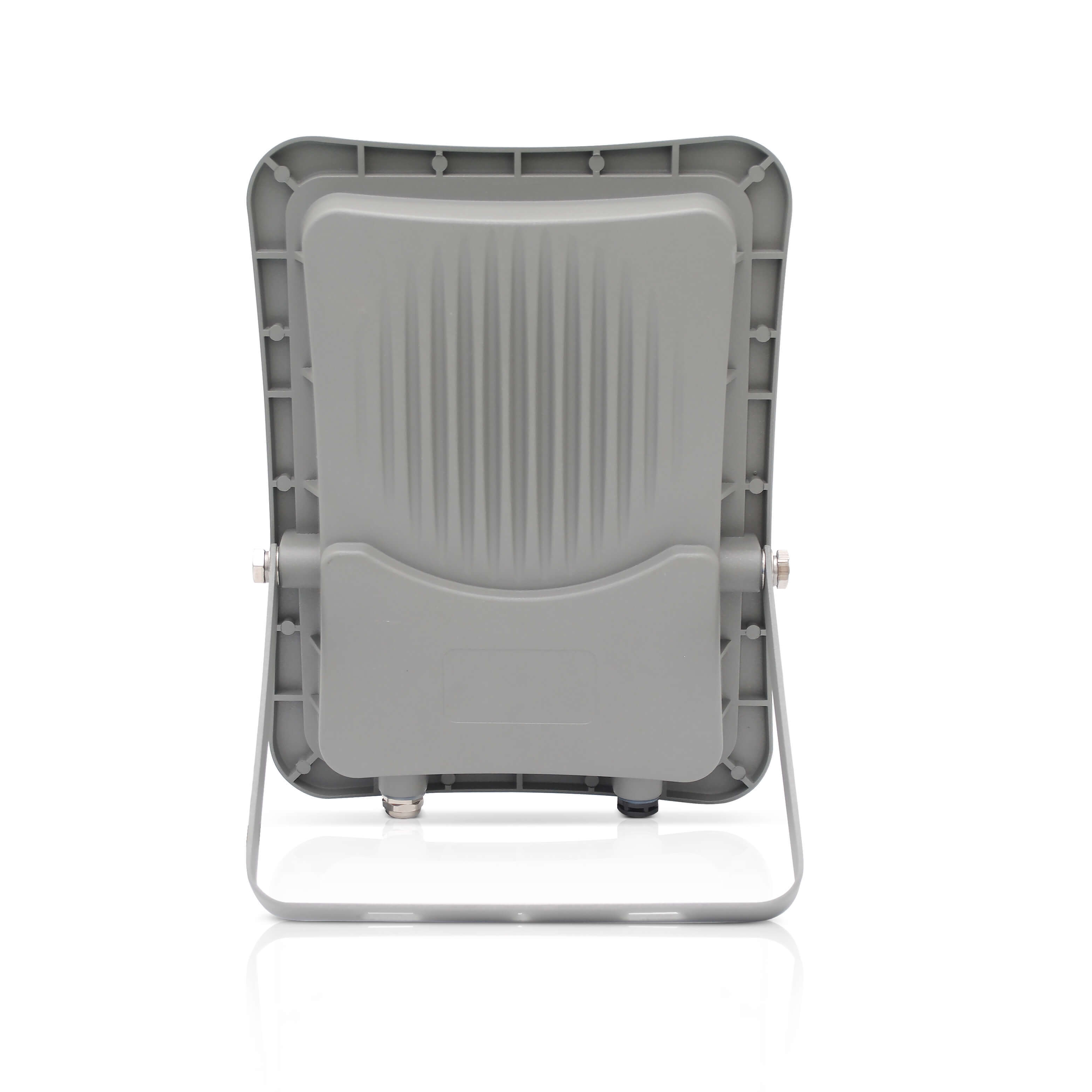

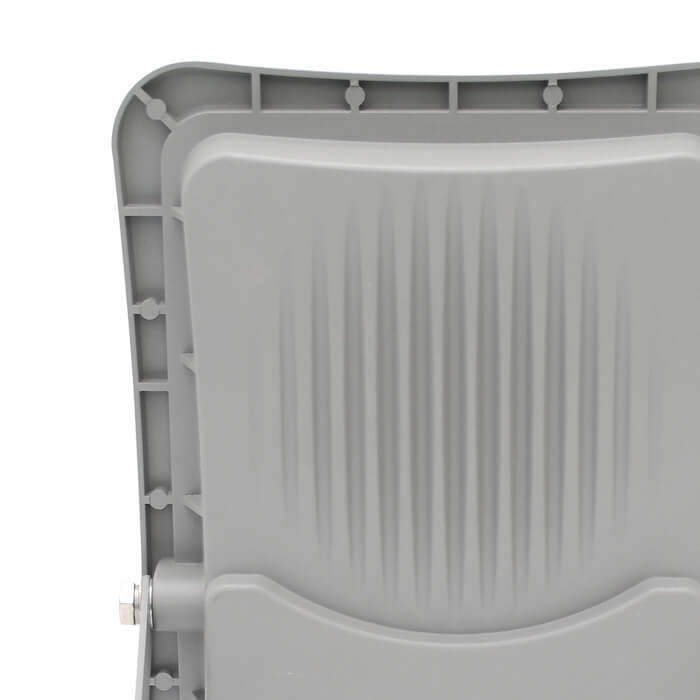

Die-cast Aluminium Housing
Provides strength, durability, and excellent heat dissipation. Lightweight and corrosion-resistant, it offers reliable protection for electronic components in outdoor lighting and harsh environments.

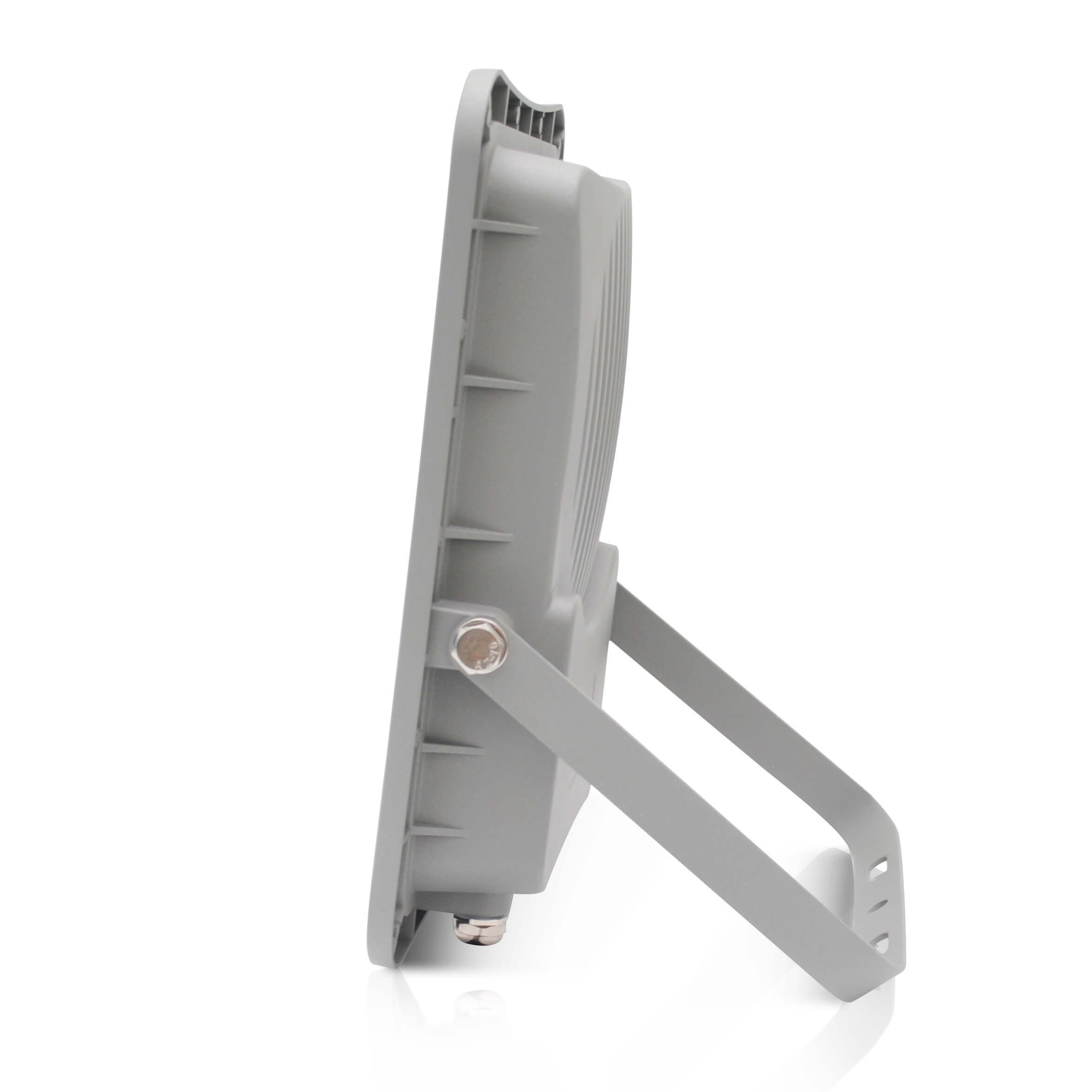

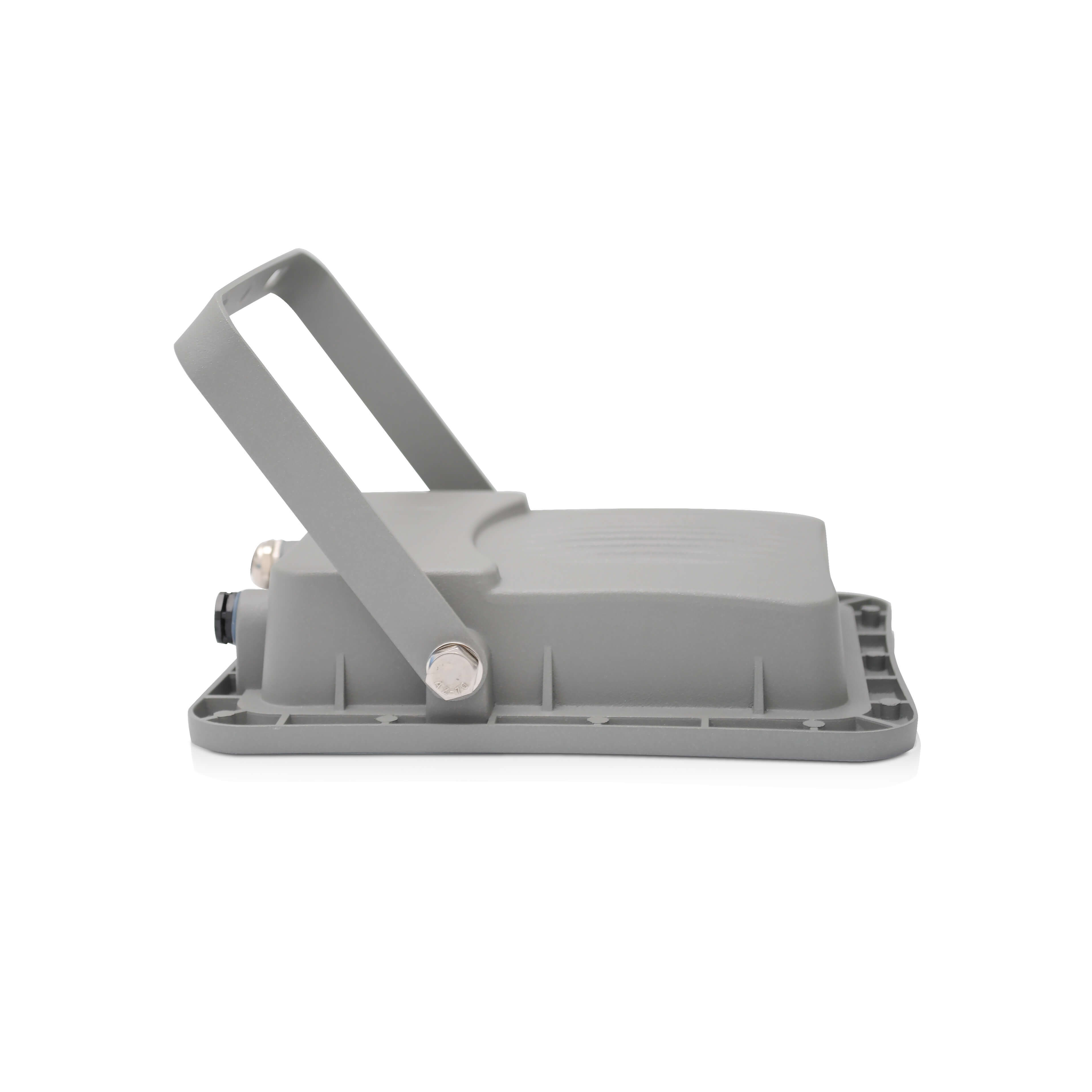

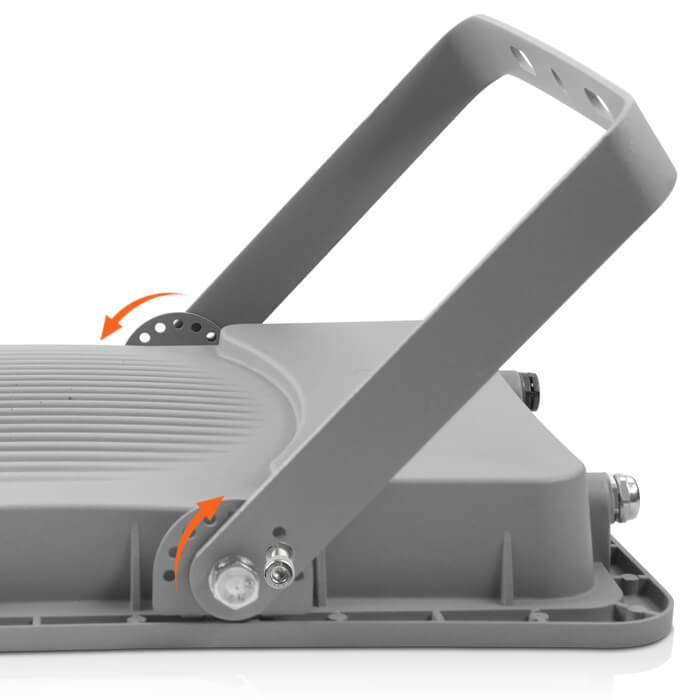

Adjustable Bracket
Its unique bracket design allows for 310° rotation, enabling flexible adjustment of the lighting angle to suit various illumination needs. Equipped with an adjustment plate, the angle can be securely fixed to prevent any loosening over time.

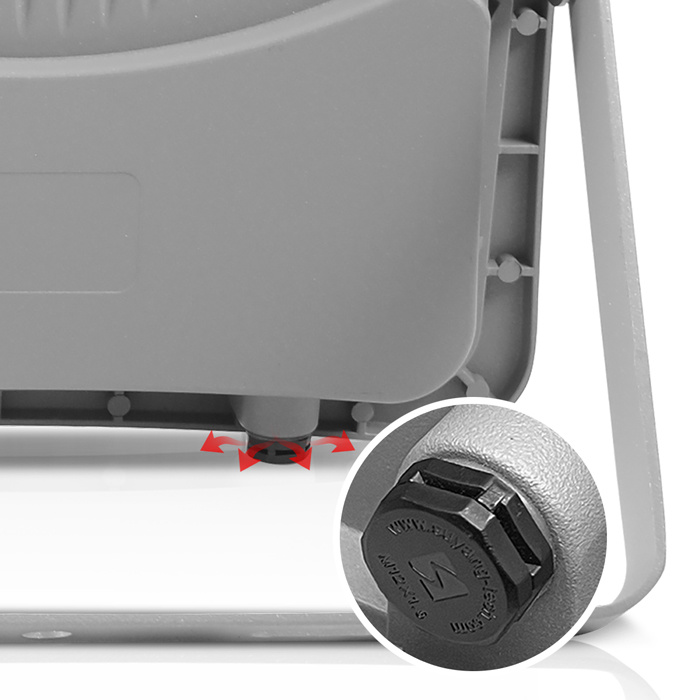

IP68 Waterproof Breather Valve
Ensures effective pressure regulation and prevents moisture buildup, providing reliable protection in extreme weather conditions.
FUNCTIONS & CUSTOMIZATION

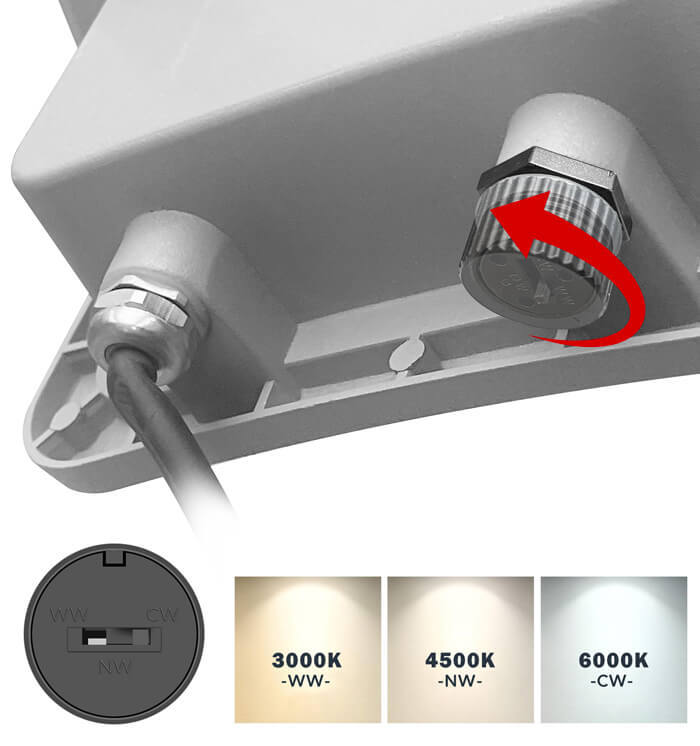

3CCT Tunable Mode
Utilizes a dip switch mechanism to adjust the color temperature, offering enhanced convenience and flexibility. With three selectable options—such as 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White)—users can easily customize the lighting to suit various environments and needs. This design eliminates the need for multiple fixtures, reducing inventory and installation complexity while ensuring optimal illumination for both residential and commercial applications.
Detection Modes
1. Built-in Radar Sensing Mode
The built-in radar sensor offers a sleek and compact design without compromising performance.
- Integrated design: Discreetly embedded within the light.
- High sensitivity: Detects movement through walls or glass.
- Wide range: Reliable detection over a large area.
- Energy-efficient: Adjusts light based on movement to save power.
2. External Motion Sensing Mode
The external motion sensor provides greater flexibility by allowing you to position it for optimal coverage.
- Flexible mounting: Can be placed for optimal coverage.
- Accurate detection: Ideal for wide-open or outdoor areas.
- Weather-resistant: Built to withstand outdoor elements.
- Customizable settings: Adjust sensitivity and delay for tailored detection.
Note: The two sensing modes are designed for specific applications and operate independently to ensure optimal performance. As such, they cannot be equipped simultaneously on the same fixture.

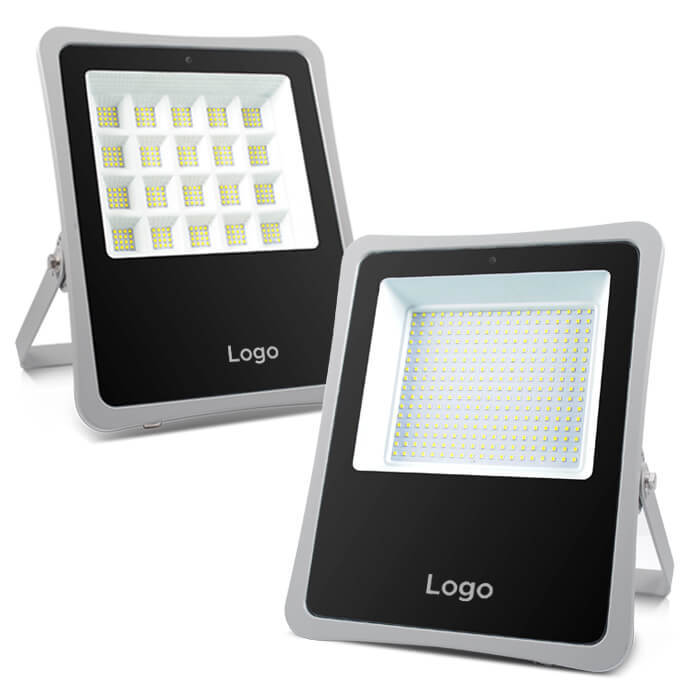

Reflector Options
1. Grid-Style Reflector
The grid-style reflector is designed to deliver precise, focused lighting. Its unique grid pattern ensures maximum light intensity, making it ideal for applications requiring concentrated illumination.
- Focused beam: Provides a sharp and directed light, perfect for highlighting specific areas.
- Enhanced brightness: Maximizes light efficiency for tasks requiring high visibility.
- Stylish design: The grid pattern adds a modern, professional look to the lighting fixture.
2. Wide-Angle Reflector
The wide-angle reflector offers expansive light coverage, making it perfect for general area lighting. Its design ensures even and diffused illumination across larger spaces.
- Broad coverage: Distributes light evenly over wide areas, ideal for outdoor or large indoor spaces.
- Soft lighting: Reduces harsh shadows, creating a more comfortable and balanced atmosphere.
- Versatile use: Suitable for both functional and decorative lighting needs.

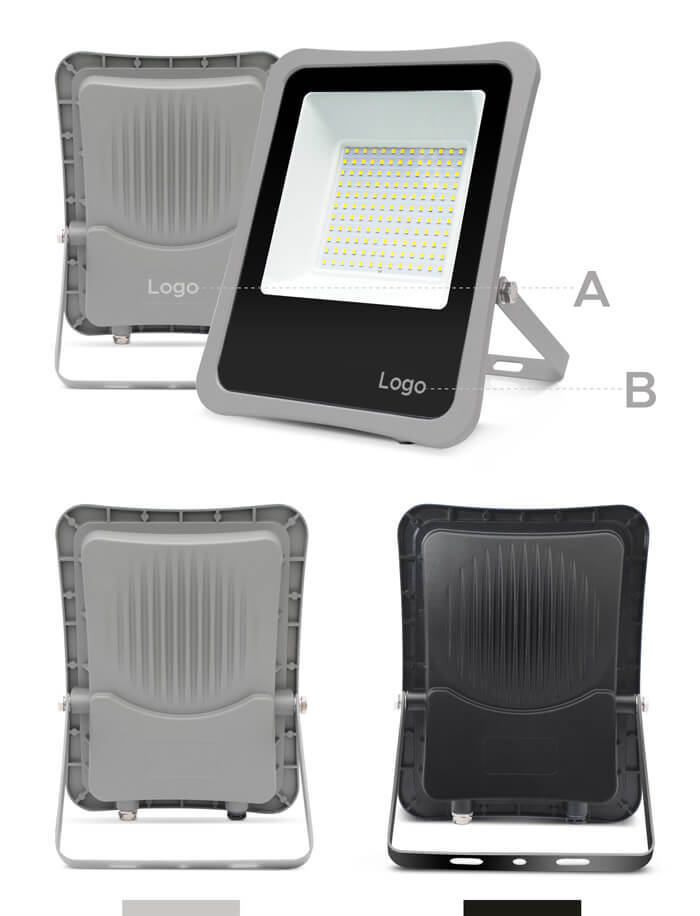

OEM Customization Services
We specialize in professional OEM customization, offering precise logo branding on both housings and lenses.
(B) Lenses utilize advanced laminated glass printing technology for durability and clarity, while (A) housings feature high-precision laser engraving for a sleek, professional finish. These tailored solutions ensure your products stand out with a unique and premium design.
Housing Color Options:
The default choices are black and gray, featuring premium outdoor powder coating for a durable, weather-resistant finish. These colors not only provide a sleek and modern appearance but also ensure long-lasting protection against fading and corrosion, making them ideal for outdoor applications. Custom colors are available upon request to suit your specific design needs.
Packaging and Material Customization
We offer end-to-end customization services, covering product packaging, user manuals, and outer cartons. Each component is meticulously designed to reflect your brand identity, ensuring durability, functionality, and a polished, professional presentation that elevates your product’s value.
*Minimum order quantities apply.
PACKAGING INFORMATION
DOCUMENTS AND CERTIFICATES
